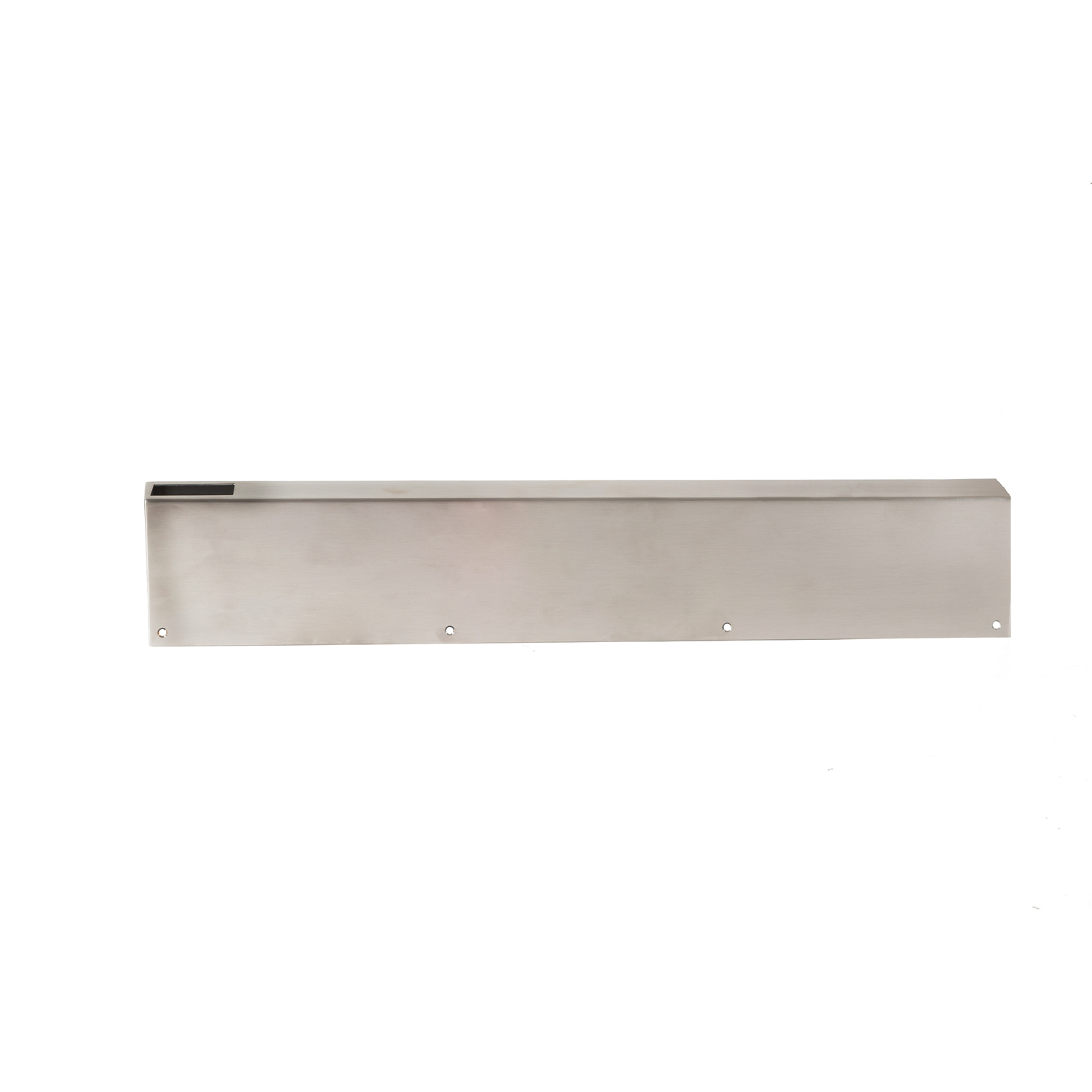

DC050 Door Cap

DC050 Door Cap

The DC050 is a door cap used to reinforce wood doors with flush bolts or concealed vertical rods that have been damaged due to high abuse. The heavy-duty door caps are manufactured from 0.50″ stainless steel, brass or bronze and can be produced to work with any manufacturers hardware. Used with beveled or non-beveled doors and with options for surface mounting or thru-bolting, Trimco’s DC050 Door Cap’s are flexible to work in just about any application.

  • Heavy-duty door cap for use with flush bolts and concealed vertical rod exit devices.
  • Reinforces door (top and/or bottom) damaged from high use and abuse.
  • Durable 0.50" stainless steel brass or bronze construction.
  • Can be produced to work with any manufacturers flush bolts or concealed vertical rod devices.
  • Easy installation requires no special tools or removal of the hardware from the door.
  • Can be surface mounted or thru-bolted.
  • For use with both beveled and non-beveled doors.

  • 606 Satin Brass, Clear Coated
  • 612 Satin Bronze, Clear Coated
  • 613 Dark Oxidized Satin Bronze, Oil Rubbed
  • 629 Polished Stainless Steel
  • 630 Satin Stainless Steel
  • 710CU Steralloy – CuVerro Alloy (standard)

  • Government & Military Facilities
  • Hospitals Health Care Facilities
  • K-12 Schools
  • Public Buildings & Facilities
  • Universities & Higher Education
